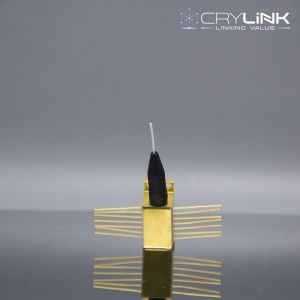

0.22NA Numerical Aperture 785nm Semiconductor Laser

Product Categories

Nanjing Crylink Photonics Co.,Ltd

Contact Now

Name: 022NA Numerical Aperture 785nm Semiconductor Laser
Brand: CRYLINK
Price: 1 USD

Brand Name : CRYLINK

Model Number : 785nm Stable Wavelength Semiconductor Laser

Certification : ISO9001

MOQ : 1

Price : custom

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Model and Parameter

Model		CL785-0.5-600mW-SWL001
Optical Parameter	Continuous Output Power (mW)	600
	Center Wavelength (nm)	785±0.5
	Spectral Width (nm)	≤0.3
	Characteristics of Wavelength With Temperature (nm/℃)	0.02
	Characteristics of Wavelength With Current (nm/A)	0.05
Electrical Parameter	Threshold Current (mA)	0.36
	Operating Current (mA)	1.4
	Operating Voltage (V)	2.3
	Differential Efficiency (W/A)	0.6
	PD Current (µA)	100-600
	Thermistor Parameters (kΩ/β(25℃))	10±5%/3450
	TEC Maximum Current (A)	2.2
	TEC Maximum Voltage (V)	8.7
Optical Fiber Parameter	Fiber Diameter (µm)	105
	Fiber Cladding Diameter (µm)	125
	Fiber Coating Diameter (µm)	250
	Numerical Aperture	0.22
	Connector	SMA905
Other Parameter	Operating Temperature (℃)	10-30
	Operating Relative Humidity (%)	75
	Storage Temperature (℃)	-20~70
	Storage Relative Humidity (%)	90
	Pin Soldering Temperature,Max (℃)	250(10 Sec.)

Feature
